Components [04/2013 - 10/2017]

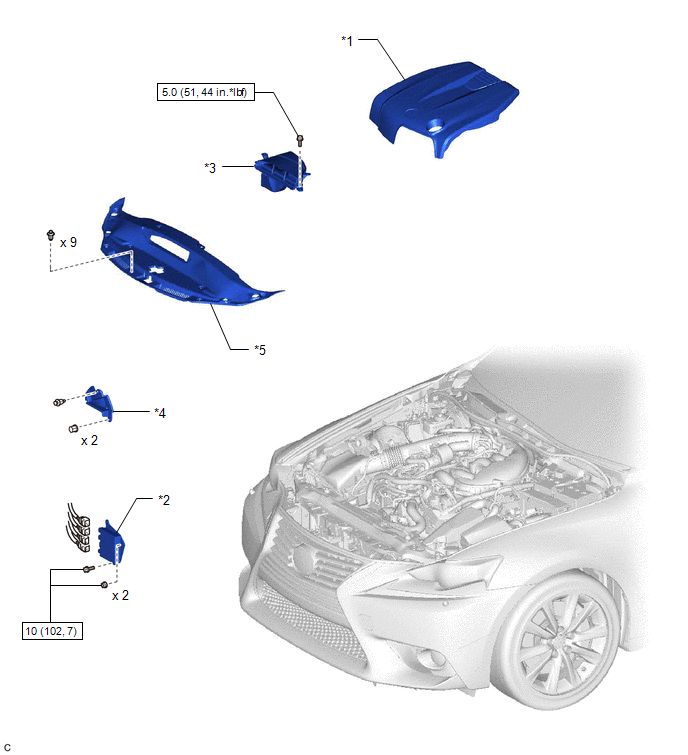

Fig 1: Injector Driver Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	V-BANK COVER SUB-ASSEMBLY	*2	INJECTOR DRIVER
*3	INLET NO. 1 AIR CLEANER	*4	NO. 1 ENGINE COVER
*5	COOL AIR INTAKE DUCT SEAL	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
