Installation [09/2015 - ]: Procedure

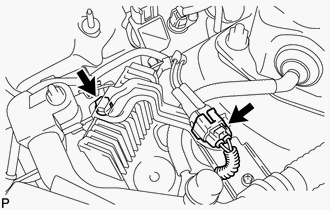

1. Install the fuel pump resistor with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

2. Connect the connector.

Refer to PROCEDURE - Step 16
