Reassembly [09/2015 - ]: Procedure

HINT:

Perform "Inspection After Repairs" after replacing the fuel pump (Refer to INITIALIZATION [09/2015 - ] ).

1. Apply gasoline to a new O-ring. Then install the O-ring and spacer to the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel main valve.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the fuel main valve to the fuel filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Attach the 5 claws on the fuel filter and install the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Make sure the O-rings are not cut or pinched during the installation.
   • Attach the claws securely.

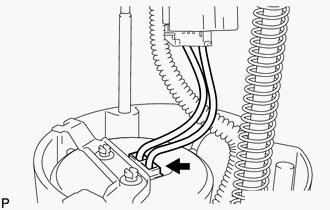

5. Connect the fuel pump connector to the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  2

See step  3

See step  4

See step  5
