Components [09/2015 - ]: Illustration

Fig 1: Ignition Coil And Spark Plug Component Location (1 Of 3)
GTY664957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Ignition Coil And Spark Plug Component Location (2 Of 3)
GTY666107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

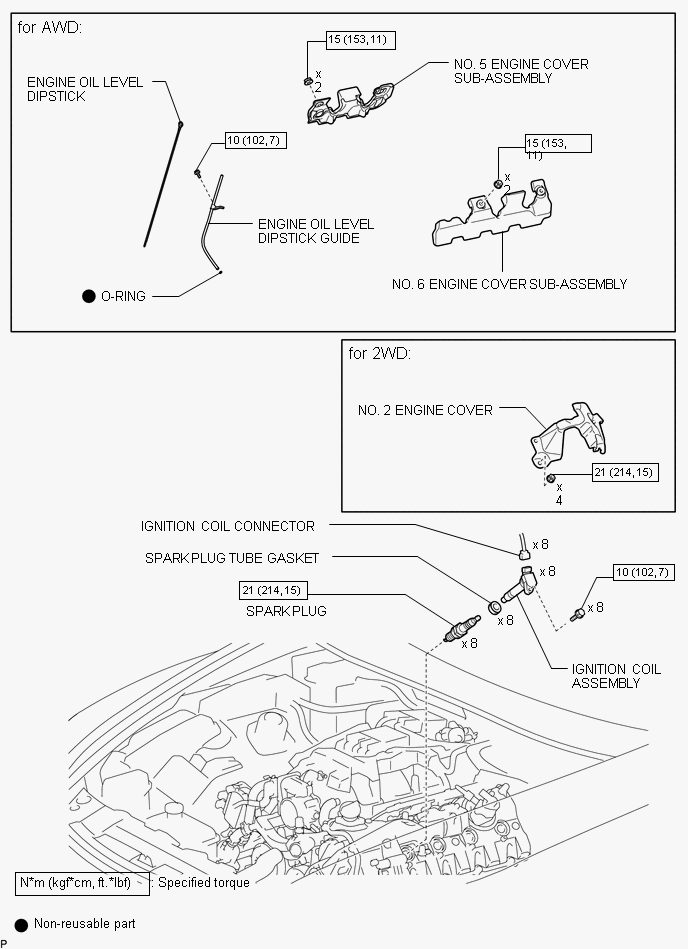

Fig 1: Ignition Coil And Spark Plug Component Location (3 Of 3)
GTY634421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
