Components [09/2015 - ]: Illustration

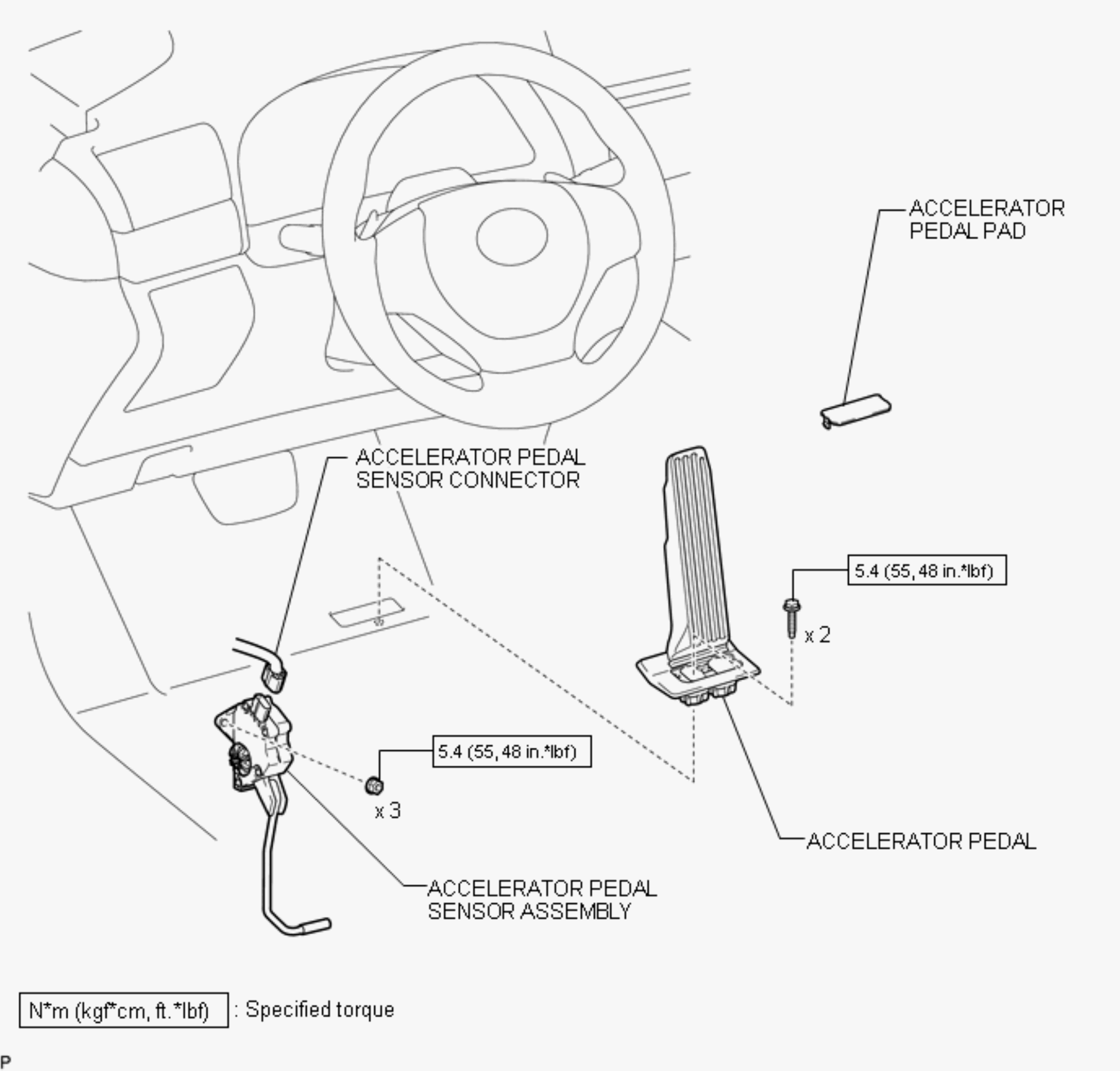

Fig 1: Accelerator Pedal Component Location With Torque Specifications
GTY618149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
