Engine Control System - Service Information
›
Mass Air Flow Meter
›
Components [09/2015 - ]
›
Illustration
Components [09/2015 - ]: Illustration

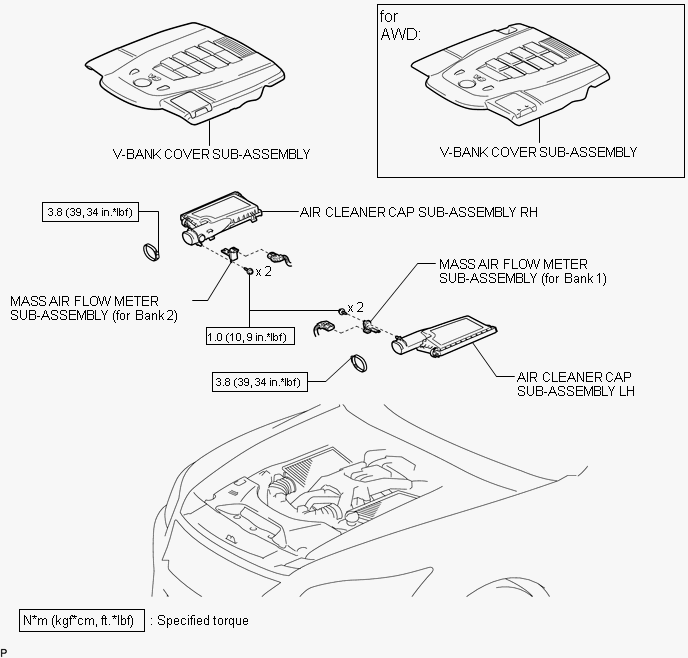

Fig 1: Mass Air Flow Meter Component Location With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
