Removal [09/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 4

  3. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  5. REMOVE FRONT WHEEL
  6. REMOVE SKID CONTROL SENSOR WIRE
    1. Disconnect the front fender liner so that the skid control sensor wire connector can be disconnected.

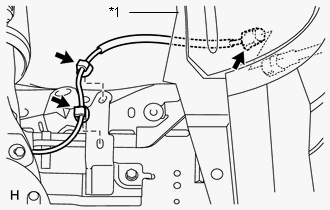

      GTY657909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fender Liner
    2. Disconnect the sensor connector.
    3. Detach the 2 sensor clips.
    4. Remove the 2 bolts and 2 sensor clamps.

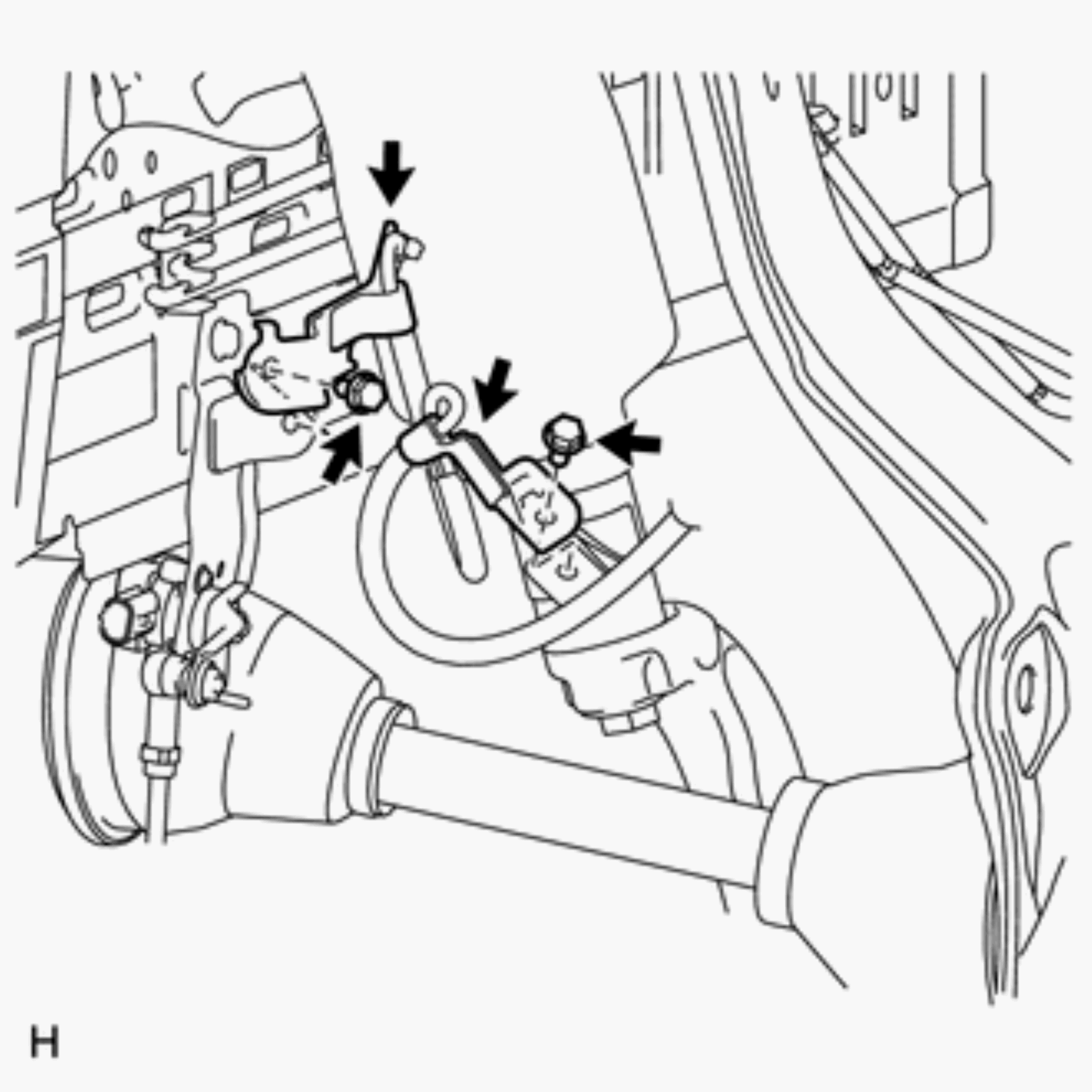

      GTY614577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the pad wear indicator connector.

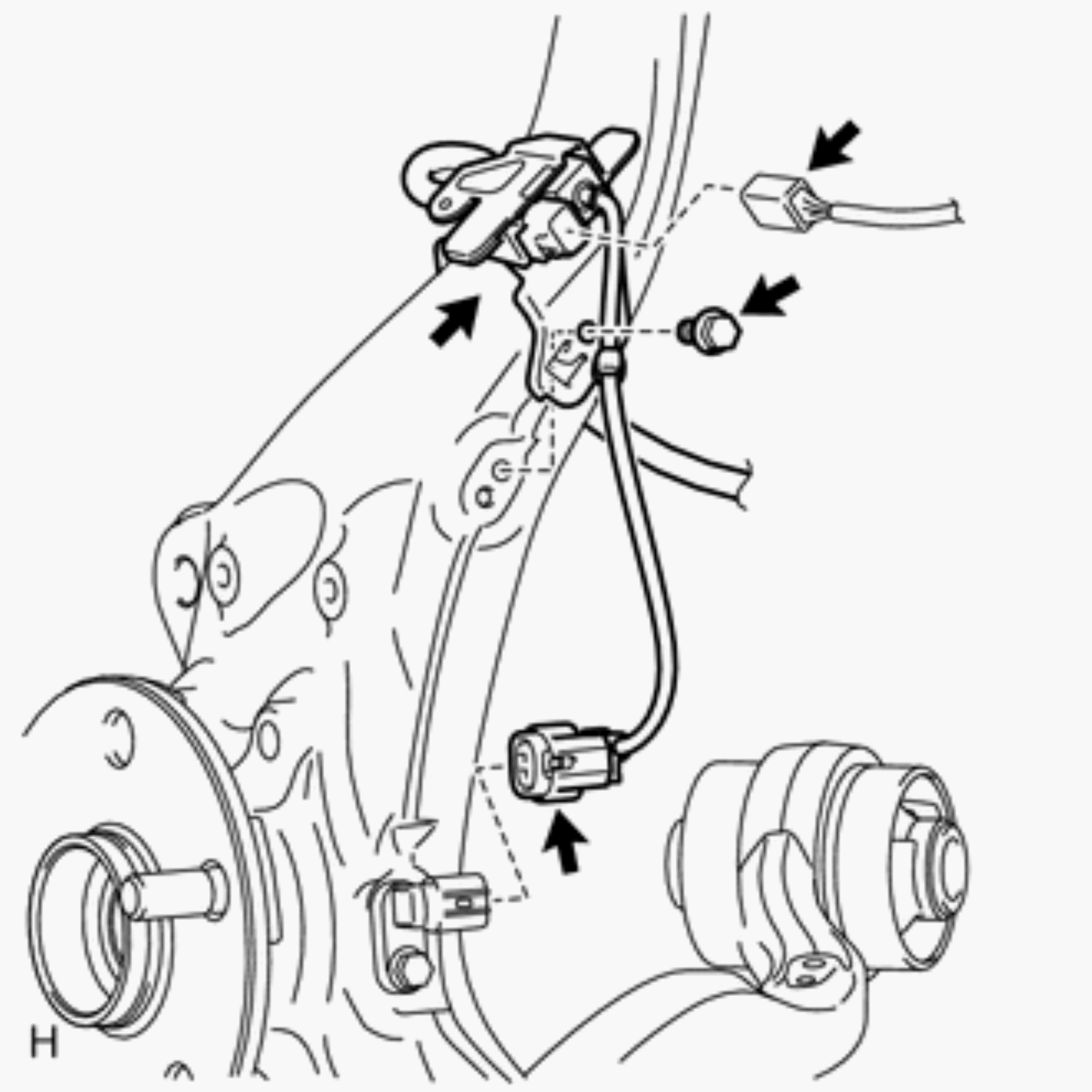

      GTY614581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the connector from the front speed sensor.
    7. Remove the bolt and sensor clamp.
  7. REMOVE FRONT SPEED SENSOR RH
    1. Remove the bolt and sensor.

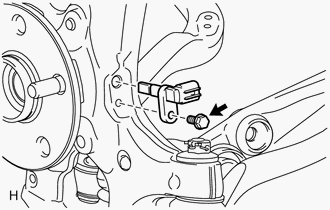

      GTY653701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • The speed sensor is easily damaged.

        When pulling out the speed sensor from the axle hub, do not use excessive force to rotate and remove it.

      • Prevent foreign matter from attaching to the sensor tip.
      • Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
