Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE ENGINE ROOM SIDE COVER LH

    Refer to PROCEDURE - Step 9

  3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 4

  5. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

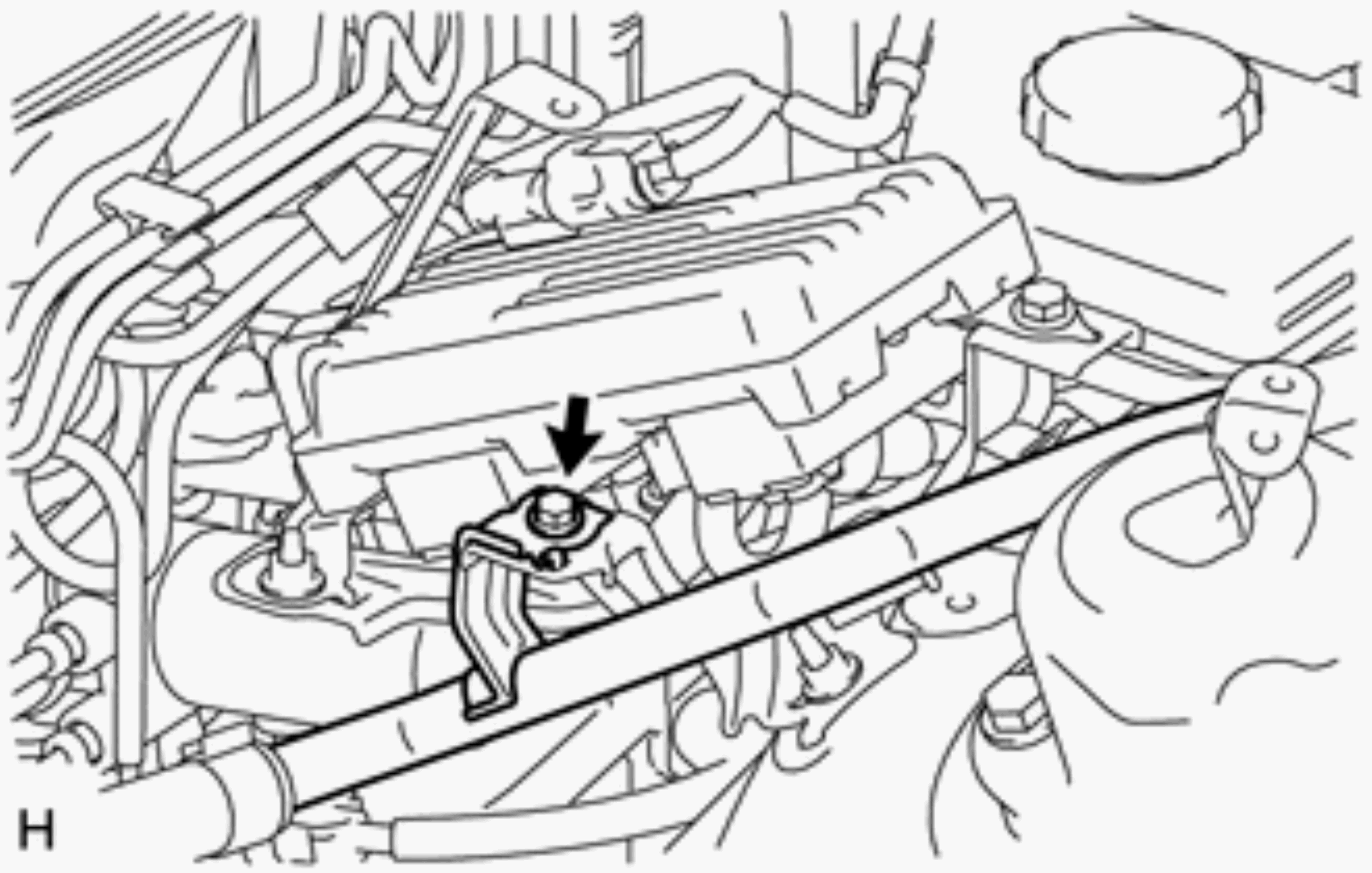

  7. DISCONNECT NO. 1 MOTOR COOLING PIPE
    1. Remove the bolt and disconnect the No. 1 motor cooling pipe from the skid control ECU bracket.
      GTY613937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SKID CONTROL ECU
    1. Disconnect the short connector for the brake stroke simulator cylinder from the bracket of the skid control ECU.
      GTY654513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
    2. Remove the 2 bolts, nut and ECU.

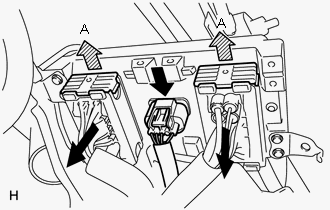

    3. Pull the 2 lock levers upward to release the locks and disconnect the 2 connectors (labeled A).
      GTY628289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector.
  9. DISCONNECT NO. 3 RELAY BLOCK

    Refer to 12

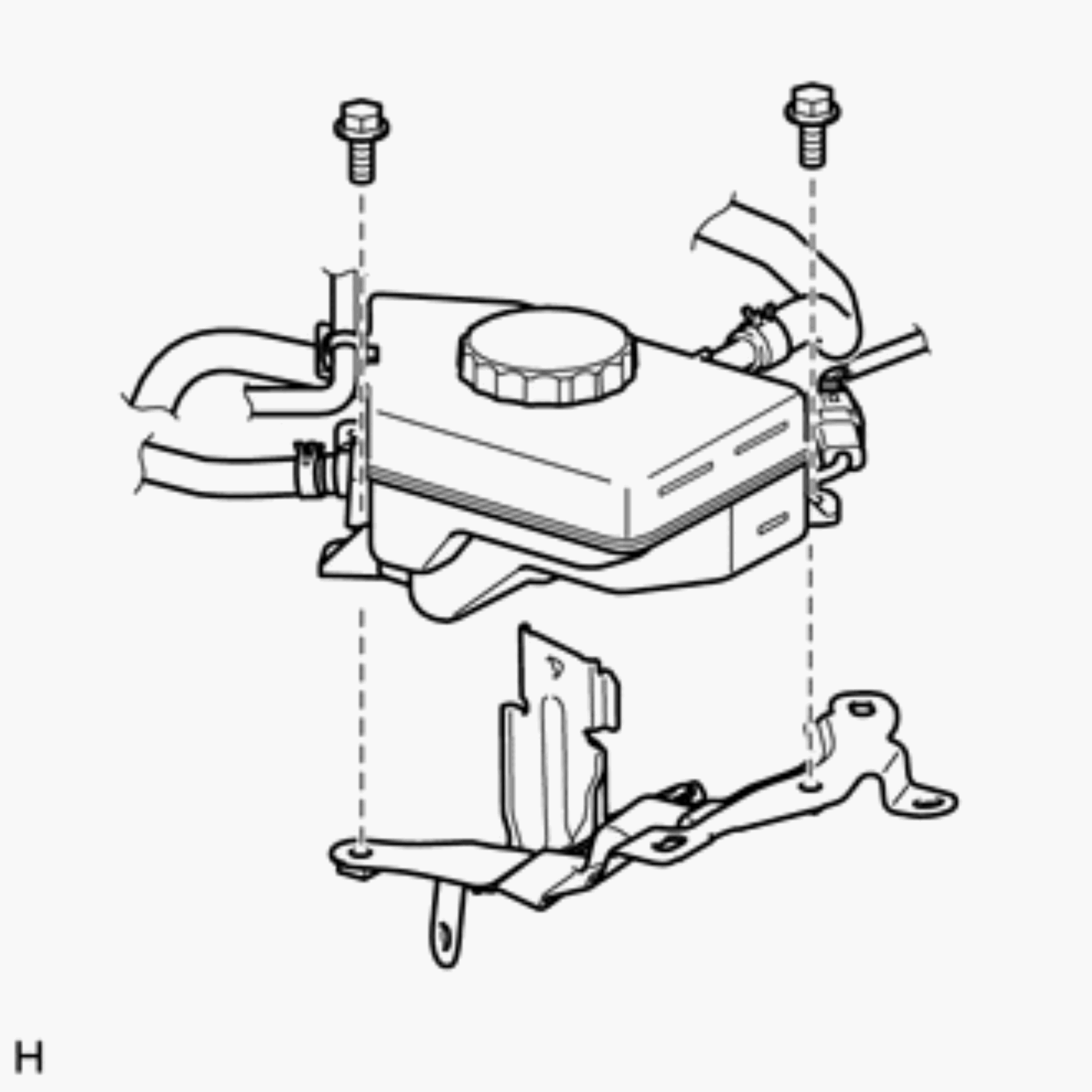

  10. DISCONNECT BRAKE FLUID RESERVOIR
    1. Remove the 2 bolts.
      GTY672806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the brake fluid reservoir.

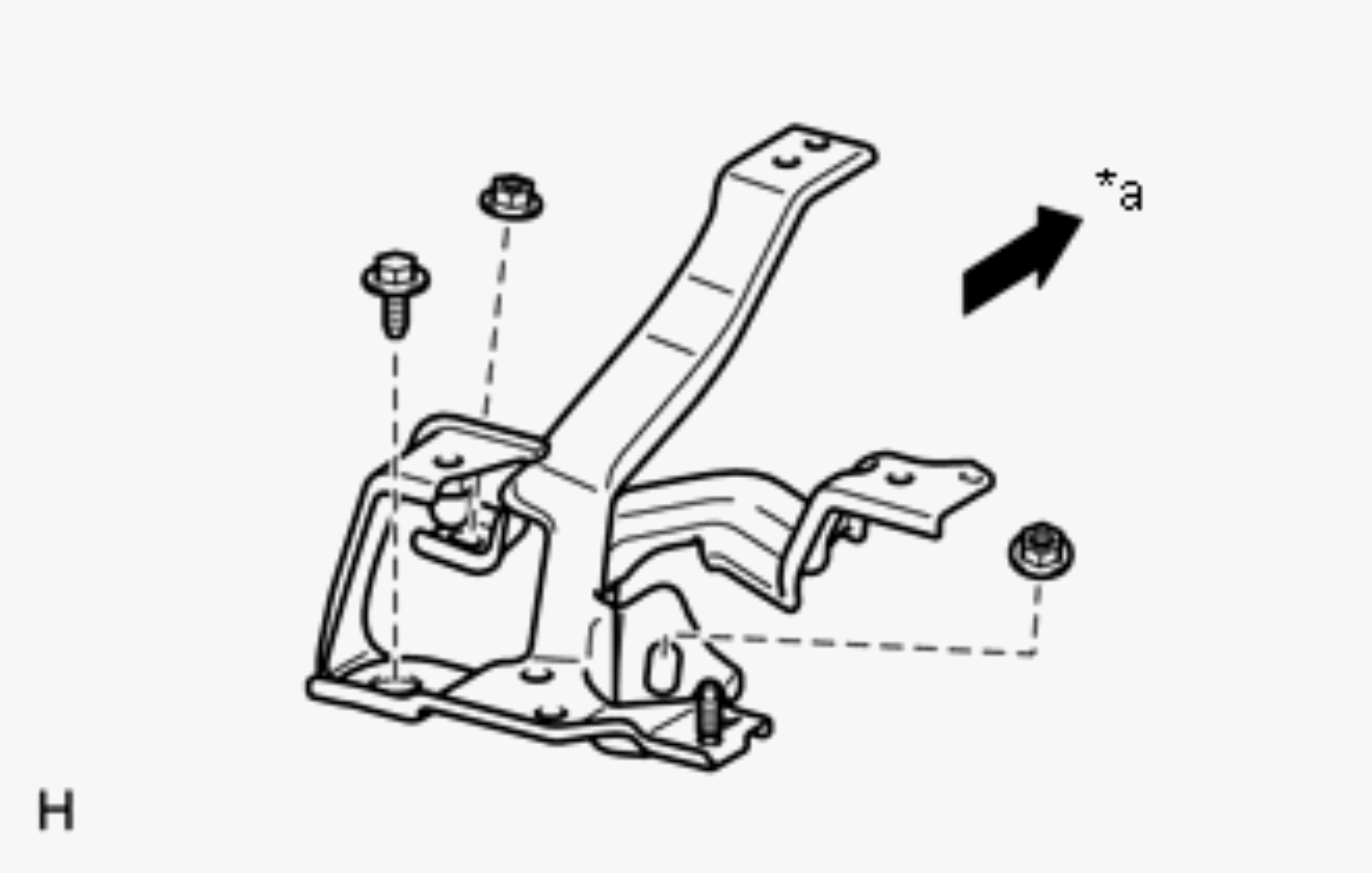

  11. REMOVE SKID CONTROL ECU BRACKET
    1. Remove the 2 nuts, bolt and bracket.
      GTY642617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
