Removal [09/2015 - ]: Procedure

  1. REMOVE ENGINE AND TRANSMISSION

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

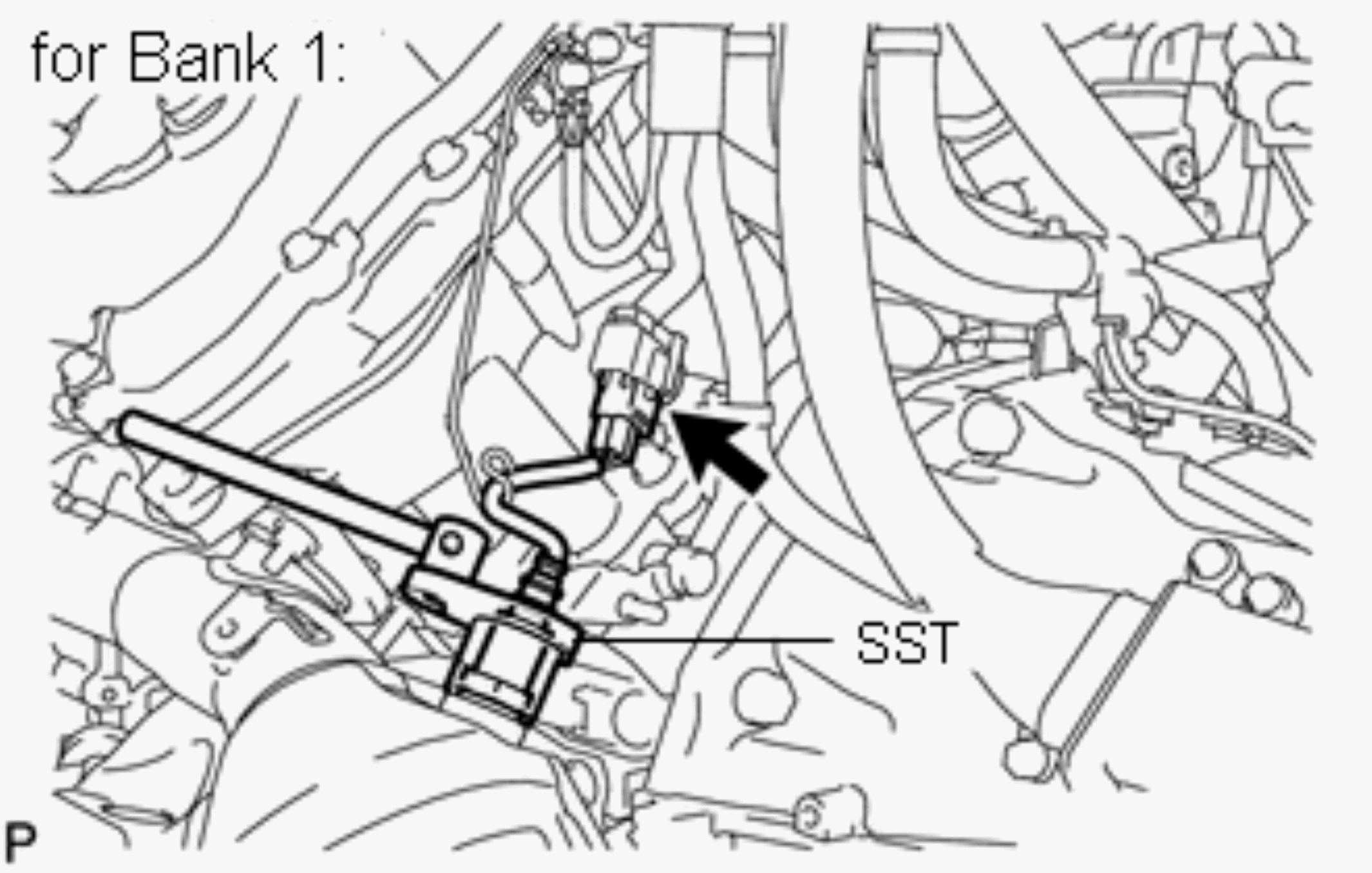

    1. Disconnect the air fuel ratio sensor connector.
      GTY647611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
      • SST: 09224-00010
  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

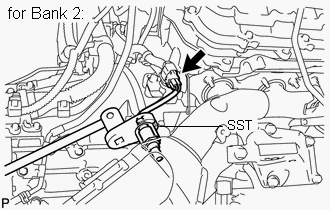

    1. Disconnect the air fuel ratio sensor connector.
      GTY678824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
      • SST: 09224-00010
