Removal [09/2015 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 21

  2. REMOVE CRANKSHAFT POSITION SENSOR

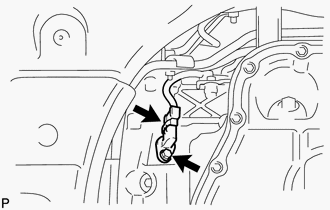

    GTY662170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.
