Removal [09/2015 - ]: Procedure

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Disconnect the heated oxygen sensor connector.

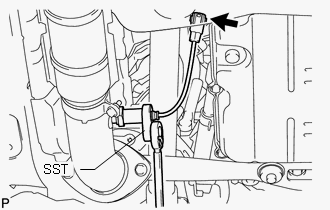

      GTY675469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
      • SST: 09224-00010
  2. REMOVE FRONT DOOR SCUFF PLATE RH

    (Refer to PROCEDURE - Step 10 )

  3. REMOVE COWL SIDE TRIM BOARD RH

    (Refer to PROCEDURE - Step 12 )

  4. REMOVE FRONT FLOOR SILENCER PAD RH
  5. REMOVE REAR NO. 2 AIR DUCT
  6. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
    1. Interior Side:

      Disconnect the heated oxygen sensor connector.

      GTY654369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Exterior Side:
      1. Remove the grommet.

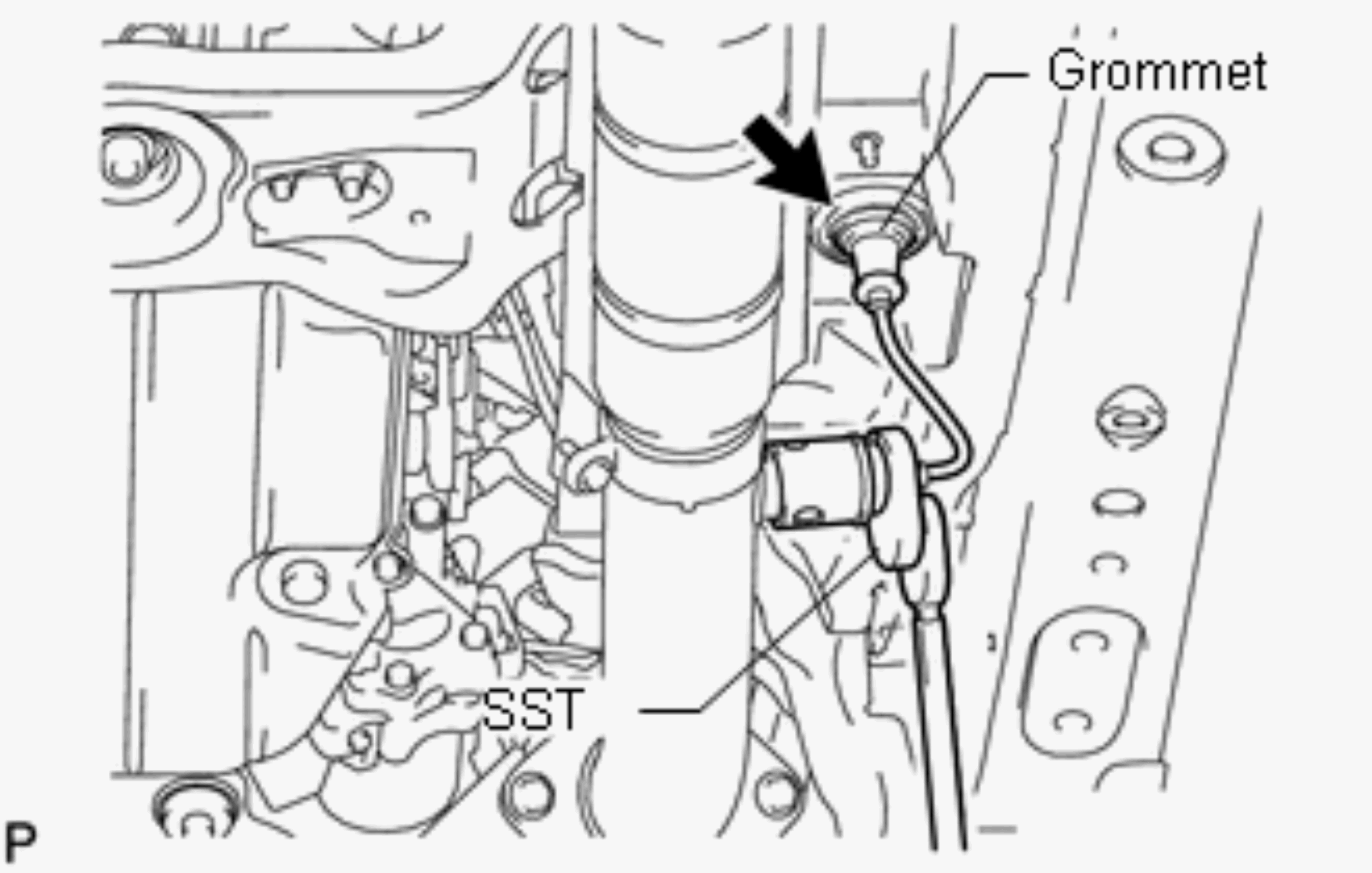

        GTY617570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
        • SST: 09224-00010
