Engine Control System - Service Information
›
Knock Sensor
›
Components [09/2015 - ]
›
Illustration
Components [09/2015 - ]: Illustration

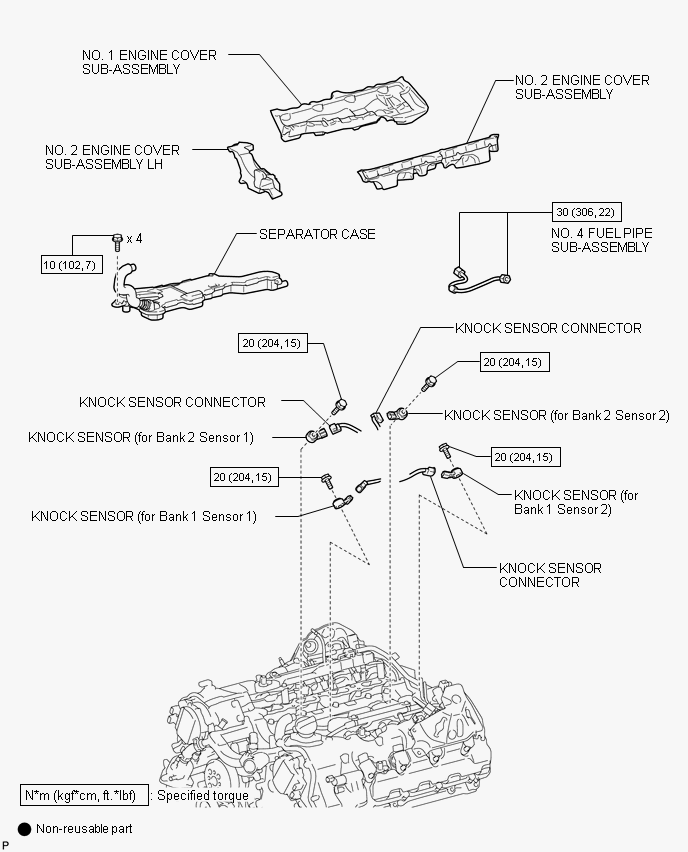

Fig 1: Knock Sensor Replacement Components W/ Torque Specifications
