- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 10
- REMOVE NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 11
- REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 7
- REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 8
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 7
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 7

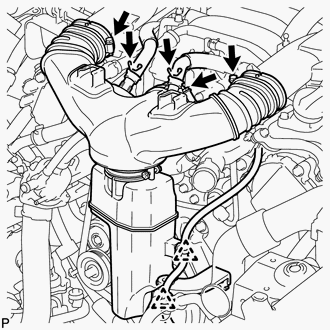

- REMOVE INTAKE AIR CONNECTOR PIPE
- Disconnect the No. 1 ventilation hose and No. 2 ventilation hose from the intake air connector pipe.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using a clip remover, detach the 2 wire harness clamps.
- Loosen the 3 hose clamps, and remove the intake air connector pipe.
- REMOVE THROTTLE BODY ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the throttle body motor connector.
- Remove the 4 bolts and throttle body assembly.

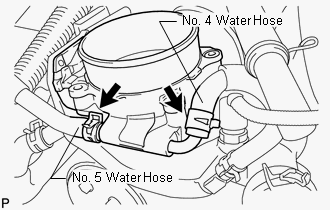

- Disconnect the No. 4 and No. 5 water by-pass hoses from the throttle body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the gasket from the intake manifold.
