VVT Sensor
›
Components [09/2015 - ]
›
Illustration
Components [09/2015 - ]: Illustration

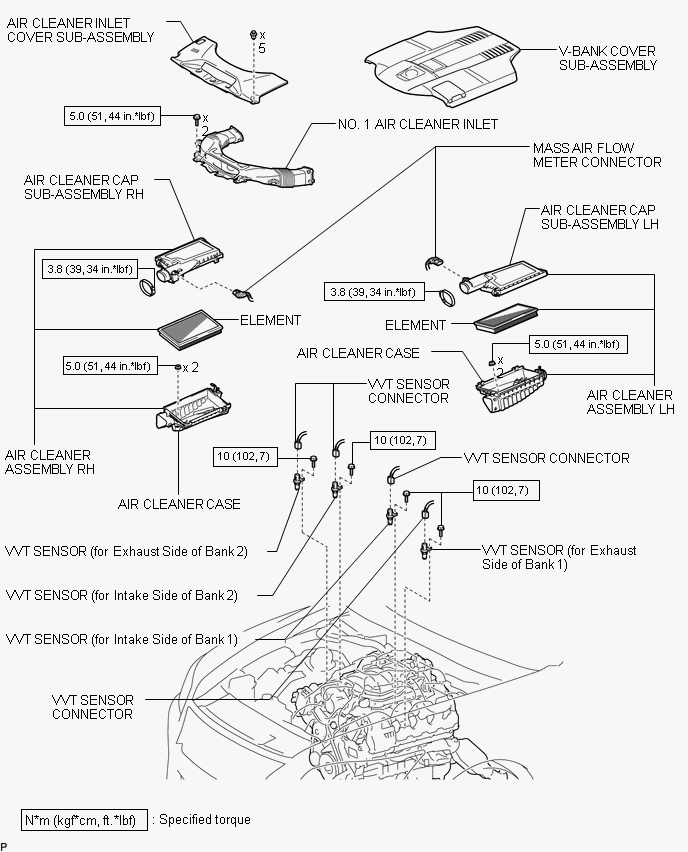

Fig 1: VVT Sensor Replacement Components W/ Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
