Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 11

  4. REMOVE AIR CLEANER ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  5. REMOVE AIR CLEANER ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  6. REMOVE VVT SENSOR
    1. Disconnect the 4 VVT sensor connectors.

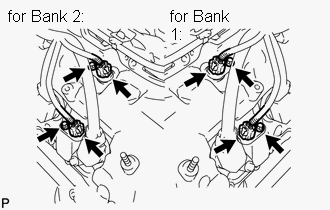

      GTY652196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 VVT sensors.
