Installation [09/2015 - ]: Procedure

  1. INSTALL STEERING CONTROL ECU

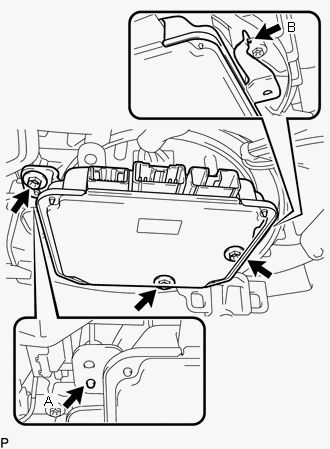

    1. Install the ECU with the 3 screws.
      GTY666710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      HINT:

      • Align positioning boss A of the blower with the hole of the ECU.
      • Securely attach the hook B of the ECU to the blower.
    2. Connect the 3 ECU connectors.
  2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
  4. INSTALL BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 4

  5. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  6. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [09/2015 - ] )

  7. PERFORM INITIALIZATION
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  8. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION

    (Refer to CALIBRATION [09/2015 - ] ).
