Installation [09/2015 - ]: Procedure
- TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH
- Insert the toe adjust cam from the front of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.NOTE:
Align the matchmarks of the No. 2 suspension toe adjust plate and suspension member.

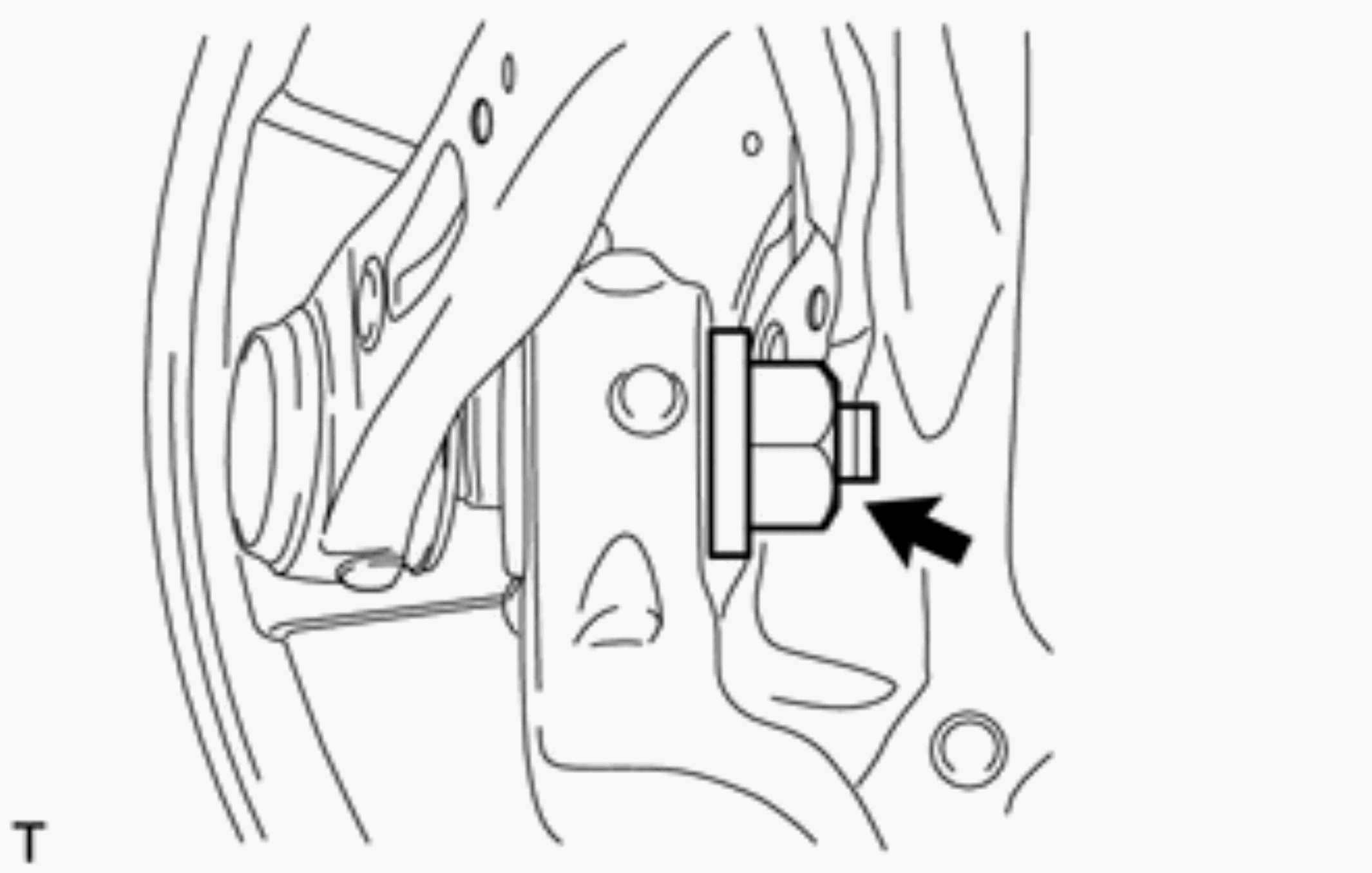

Temporarily install the toe control arm with a new nut to the axle carrier.
- Insert the toe adjust cam from the front of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.
- TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH
- INSTALL SKID CONTROL SENSOR WIRE
Refer to PROCEDURE - Step 2
- INSTALL LOAD SENSING VALVE SENSOR BRACKET
Refer to PROCEDURE - Step 1
- STABILIZE SUSPENSION
See step 16
- INSTALL REAR WHEEL
Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
- CHECK SUSPENSION CONTROL SYSTEM
- Check the suspension control system (Refer to ADJUSTMENT [09/2015 - ] ).
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
- Inspect and adjust the rear wheel alignment (Refer to ADJUSTMENT [09/2015 - ] ).
- CHECK SPEED SENSOR SIGNAL
- Check the speed sensor signal (Refer to TEST MODE PROCEDURE [09/2015 - ] ).
- ADJUST HEADLIGHT ASSEMBLY
- w/ Side Marker Light:
(Refer to ADJUSTMENT [09/2015 - ] )
- w/o Side Marker Light:
(Refer to ADJUSTMENT [09/2015 - ] )
- w/ Side Marker Light:
- ADJUST OBJECT RECOGNITION CAMERA
- Adjust the object recognition camera (Refer to ADJUSTMENT [09/2015 - ] ).
