Installation [09/2015 - ]: Procedure

  1. INSTALL TRANSMISSION SHIFT SWITCH ASSEMBLY
    1. Connect the 2 transmission shift switch assembly connectors to install the No. 1 switch wire to the 2 transmission shift switch assemblies.

      HINT:

      Make sure that the colors of the transmission shift switch assembly connector and transmission shift switch assembly match.

    2. Attach the 4 claws and install the 2 transmission shift switch assemblies with No. 1 switch wire from the steering wheel assembly.
      GTY535931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

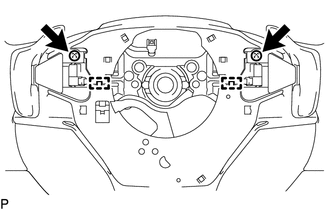

    3. Connect the 2 guides and install the 2 new screws.
      GTY524076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

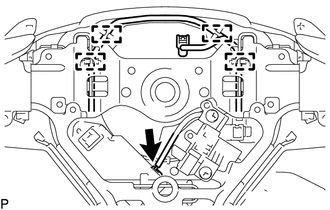

    4. Connect the 4 clamps and connector.
      GTY532554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 STEERING WHEEL BOSS COVER LOWER
    1. Attach the 2 claws and install the 2 No. 1 steering wheel boss cover lower.
      GTY524078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 new screws.
  3. INSTALL STEERING PAD SWITCH ASSEMBLY

    (Refer to REASSEMBLY [09/2015 - ] )

  4. INSTALL STEERING WHEEL ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )
