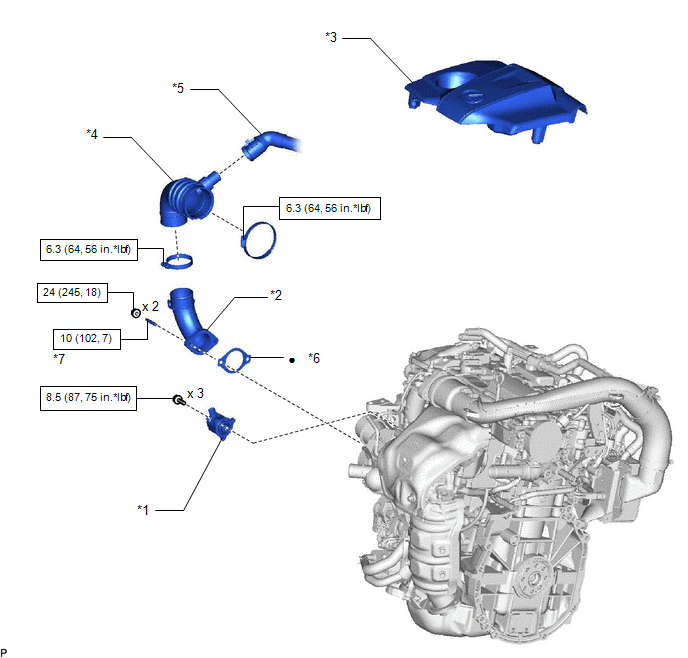

Components [10/2014 - ]
| Callout | Description | Callout | Description |
| *1 | AIR BY-PASS VALVE ASSEMBLY | *2 | COMPRESSOR INLET ELBOW |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | NO. 2 AIR CLEANER HOSE |
| *5 | NO. 4 VENTILATION HOSE | *6 | GASKET |
| *7 | STUD BOLT | - | - |
| N*m (kgf*cm, ft.*lbf) : Specified torque | • | Non-reusable part |
