Components [09/2014 - 11/2017]

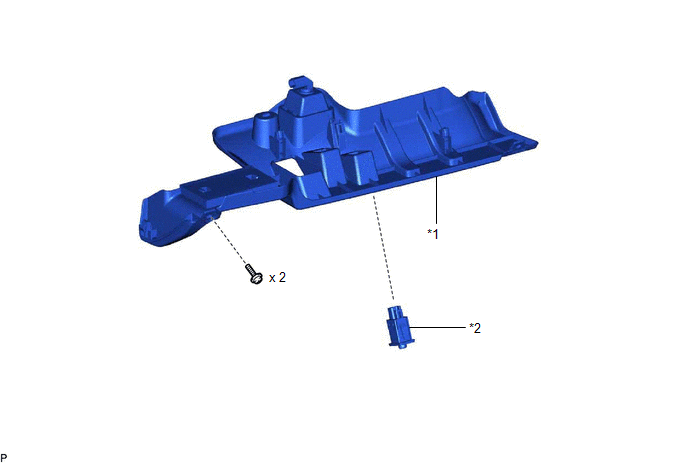

Fig 1: Pre-Collision System Cancel Switch Replacement Components [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*2

PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
