Components [09/2014 - 09/2020]

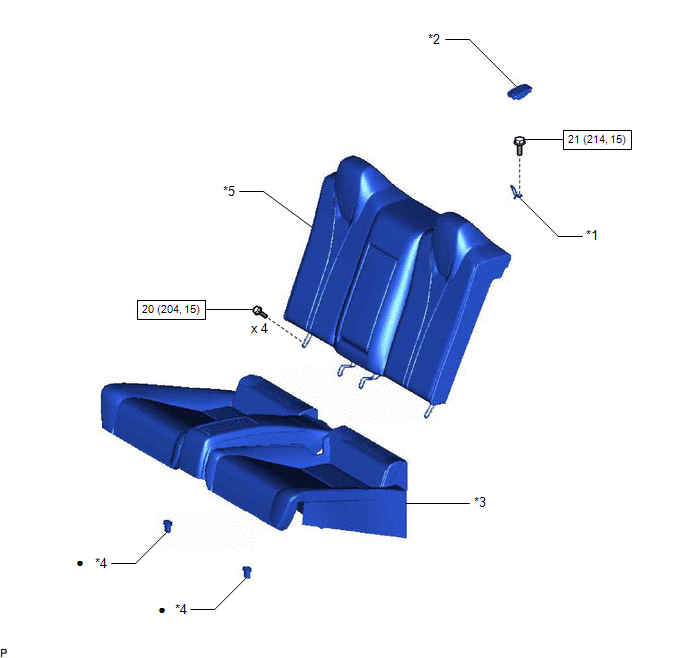

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications [09/2014 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET	*2	CHILD RESTRAINT SEAT TETHER ANCHOR COVER
*3	REAR SEAT CUSHION ASSEMBLY	*4	REAR SEAT CUSHION LOCK HOOK
*5	REAR SEATBACK ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
