Brake Control System - Service Information
›
Front Speed Sensor
›
Components [08/2014 - ]
›
Illustration
Components [08/2014 - ]: Illustration

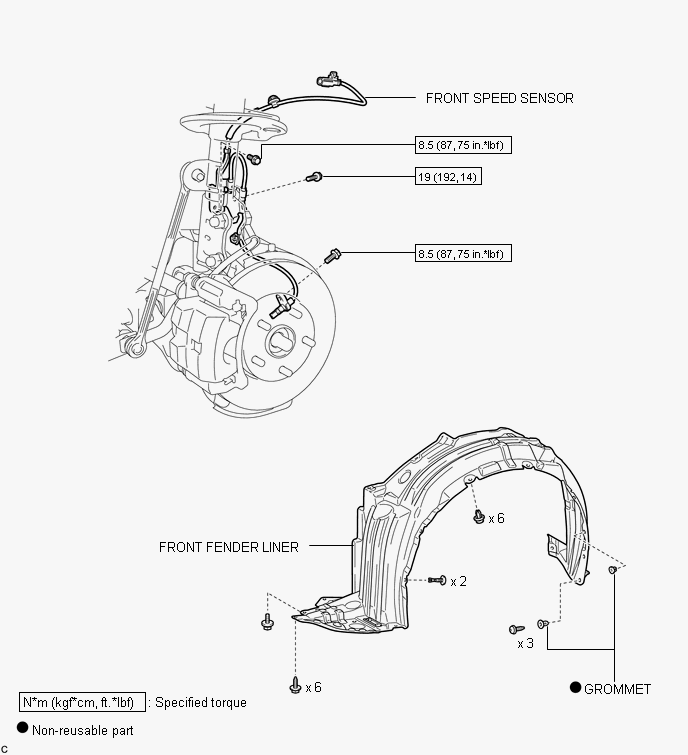

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
