Components [08/2014 - ]: Illustration

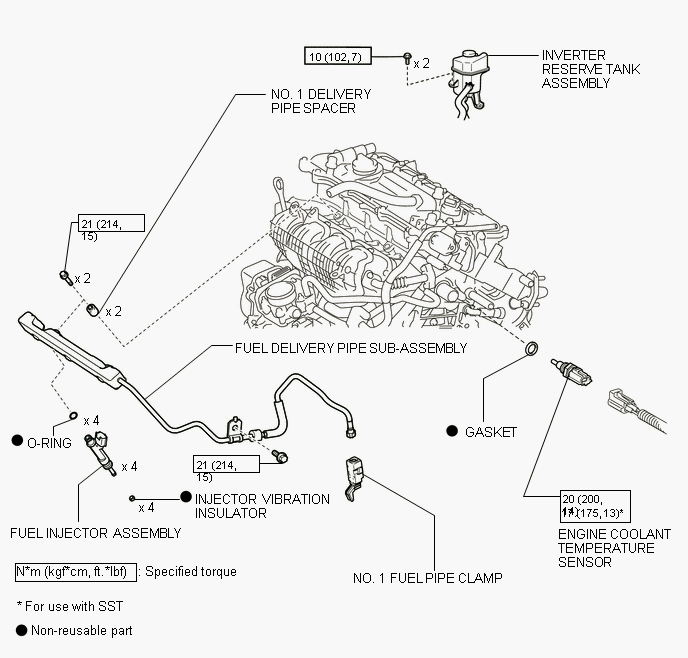

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY532189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
