Removal [08/2014 - ]: Procedure

  1. REMOVE FRONT NO. 3 ENGINE UNDER COVER
    1. Remove the 4 clips and front No. 3 engine under cover.

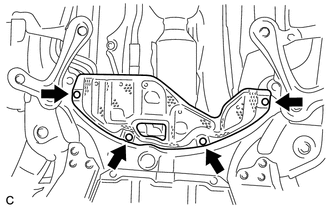

      GTY327176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HEATED OXYGEN SENSOR
    1. Disconnect the heated oxygen sensor connector.

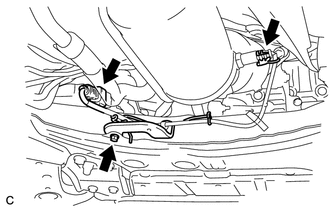

      GTY328872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the wire harness bracket.
    3. Remove the bolt and separate the wire harness clamp bracket.
    4. Disconnect the wire harness to remove the wire harness clamp bracket.
      GTY328870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using SST, remove the heated oxygen sensor.

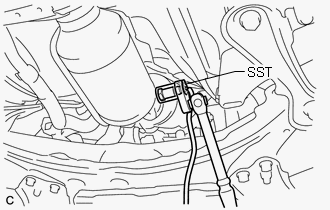

      GTY527072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
