Adjustment [08/2014 - ]: Procedure

  1. INSPECT TIRES

    Refer to PROCEDURE - Step 1

  2. MEASURE VEHICLE HEIGHT

    See step  2

  3. INSPECT CAMBER
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Install a camber-caster-kingpin gauge.
      GTY527285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Camber-caster-kingpin Gauge
    2. Inspect the camber.

      Camber (Unloaded Vehicle)

      Camber Inclination Right-left Difference
      -1°10' +/- 0°45' (-1.17° +/- 0.75°) 0°45' (0.75°) or less

      HINT:

      Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.

  4. INSPECT TOE-IN
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Release the parking brake and move the shift lever to N.
    3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step A)
    4. Put tread center marks on the rearmost points of the rear wheels and measure the distance between the marks (dimension B).
      GTY258971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Tread Center Mark
      *b Dimension B
      Front of the Vehicle
    5. Slowly push the vehicle straight ahead to cause the rear wheels to rotate 180° using the rear tire valve as a reference point.

      HINT:

      Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step A again.

    6. Measure the distance between the tread center marks on the front side of the rear wheels (dimension A).
      GTY284169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Dimension A
      Front of the Vehicle

      Toe-in (Unloaded Vehicle)

      Specified Condition Right-left Difference
      C + D: 0°12' +/- 0°12' (0.20° +/- 0.20°) 0°06' (0.10°) or less
      B - A: 2.0 +/- 2.0 mm (0.0787 +/- 0.0787 in.) 1.0 mm (0.0394 in.) or less

      HINT:

      Measure "B - A" only when "C + D" cannot be measured.

      If the toe-in is not within the specified range, adjust it at the rear No. 1 suspension arms.

  5. ADJUST TOE-IN

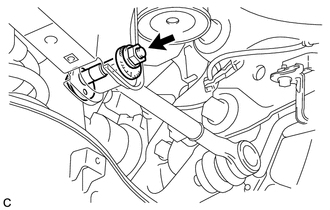

    1. Loosen the nut of the rear No. 1 suspension arm assembly (at the rear suspension member side).
      GTY281485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

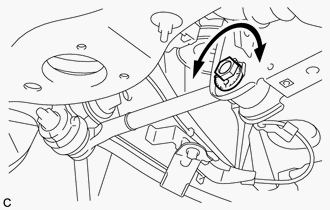

    2. Rotate the rear suspension toe adjust cam sub-assembly to adjust the toe-in.
      GTY253953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Toe-in (Unloaded Vehicle)

      Specified Condition Right-left Difference
      C + D: 0°12' +/- 0°12' (0.20° +/- 0.20°) 0°06' (0.10°) or less
      B - A: 2.0 +/- 2.0 mm (0.0787 +/- 0.0787 in.) 1.0 mm (0.0394 in.) or less

      HINT:

      Rotating the rear suspension toe adjust cam sub-assembly by one notch changes the toe by approximately 3.3 mm (0.130 in.).

    3. Tighten the nut of the rear No. 1 suspension arm assembly (at the rear suspension member side).
      GTY281485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

      NOTE:
      • Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
      • Make sure that all tires of the vehicle are on the ground and the vehicle is unloaded.
  6. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  7. PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION

    (See article. Refer to CALIBRATION [08/2014 - ] )

  8. PERFORM INITIALIZATION (w/ Height Control Sensor)
    NOTE:

    Some systems need to be initialized after the wheel alignment is adjusted (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).
