Installation [07/2015 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)

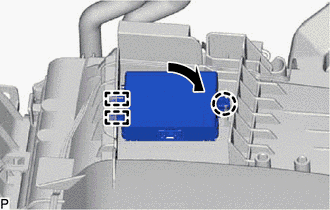

    1. Engage the 2 guides.
      GTY420172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the claw as shown in the illustration to install the ID code box (immobilizer code ECU).
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY

    Refer to INSTALLATION [07/2015 - ]

  3. REGISTER ECU CODE
    NOTE:

    If the ID code box (immobilizer code ECU) is replaced, register the ECU code and ECU communication ID. Refer to REGISTRATION [07/2015 - ]

  4. REGISTER ECU COMMUNICATION ID
    NOTE:

    If the ID code box (immobilizer code ECU) is replaced, register the ECU code and ECU communication ID. Refer to REGISTRATION [07/2015 - ]
