Components [07/2015 - ]: Illustration

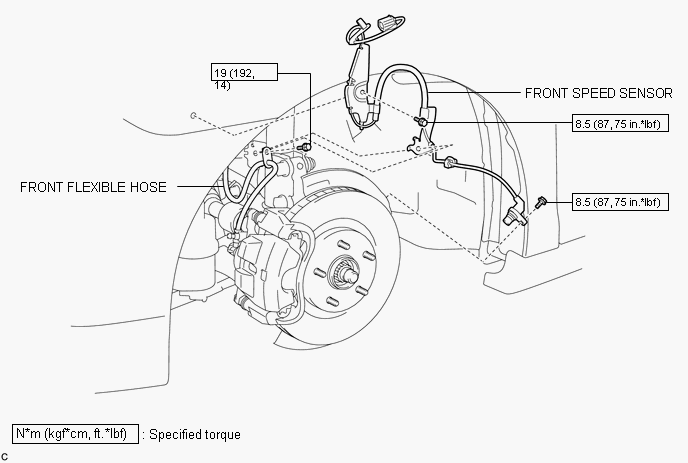

Fig 1: Front Speed Sensor With Torque Specifications
GTY670618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
