Components [07/2015 - ]: Illustration

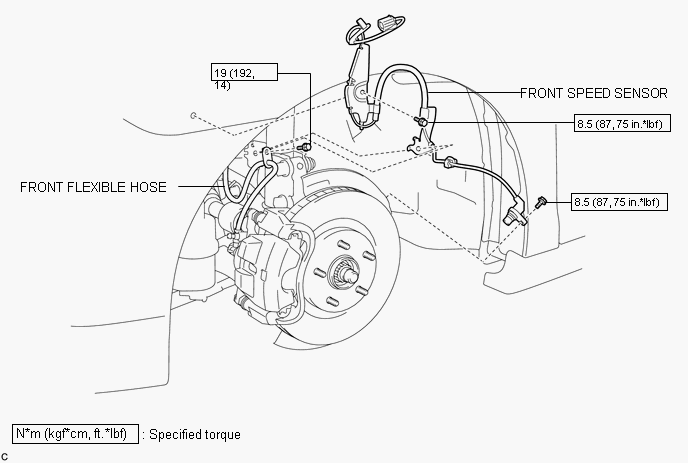

Fig 1: Front Speed Sensor Replacement Components
GTY670619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
