Removal [07/2015 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • This accelerator pedal does not require lubrication. Do not apply oil or other lubrication to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

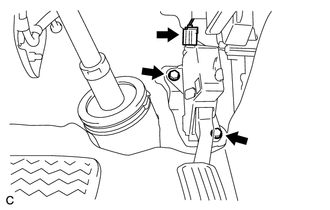

    1. Disconnect the accelerator pedal sensor assembly connector.
      GTY365014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal sensor assembly.
