Components [07/2015 - ]: Illustration

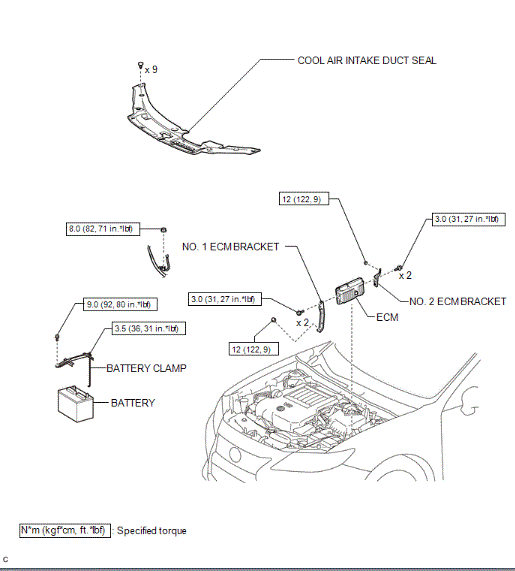

Fig 1: ECM Replacement Components With Torque Specifications

GTY510267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
