Removal [07/2015 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    (Refer to REMOVAL [07/2015 - ] )

  2. REMOVE SKID CONTROL BUZZER ASSEMBLY

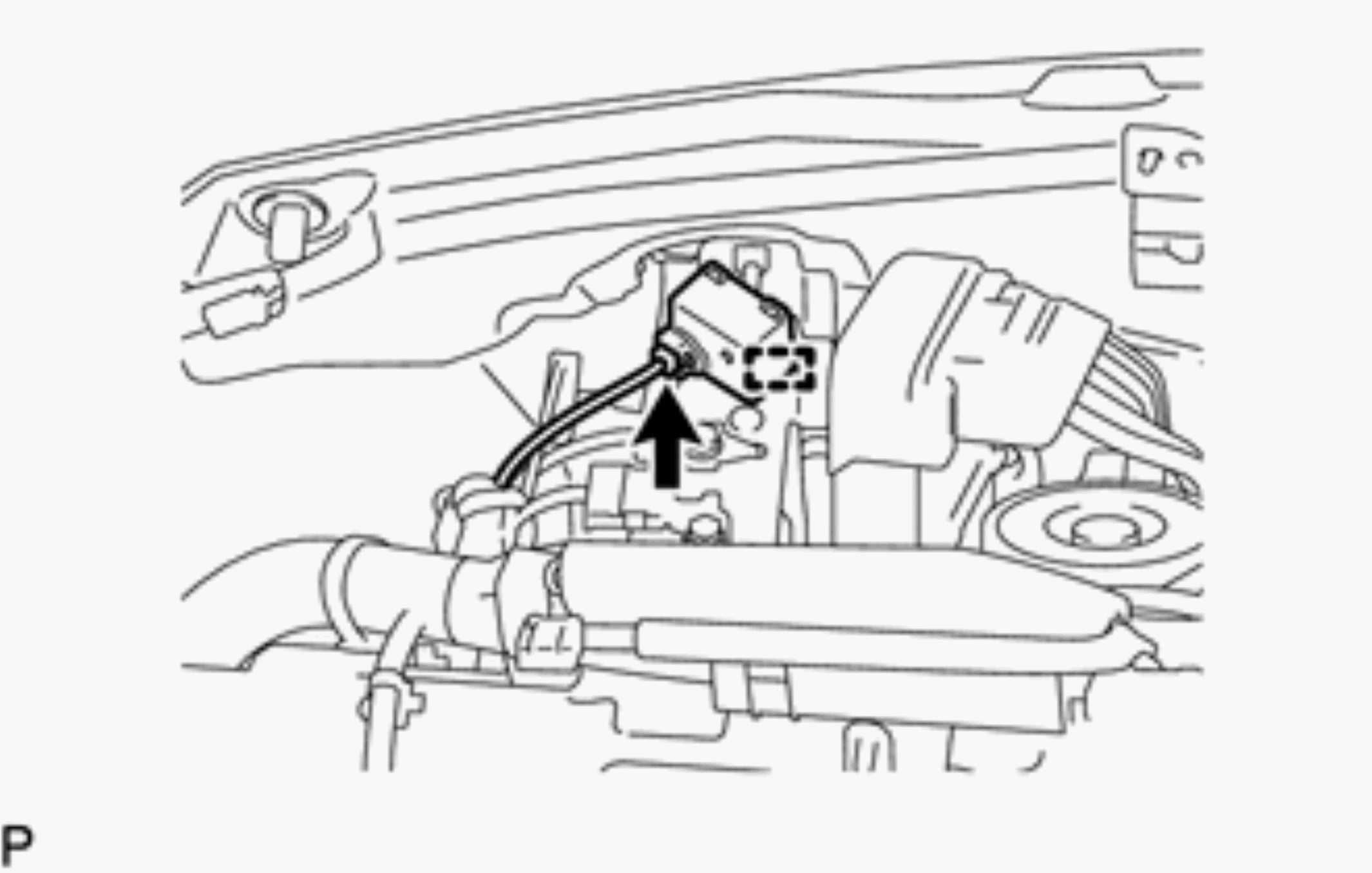

    1. Disconnect the connector.
      GTY613746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the skid control buzzer assembly.
