Components [10/2015 - ]: Illustration

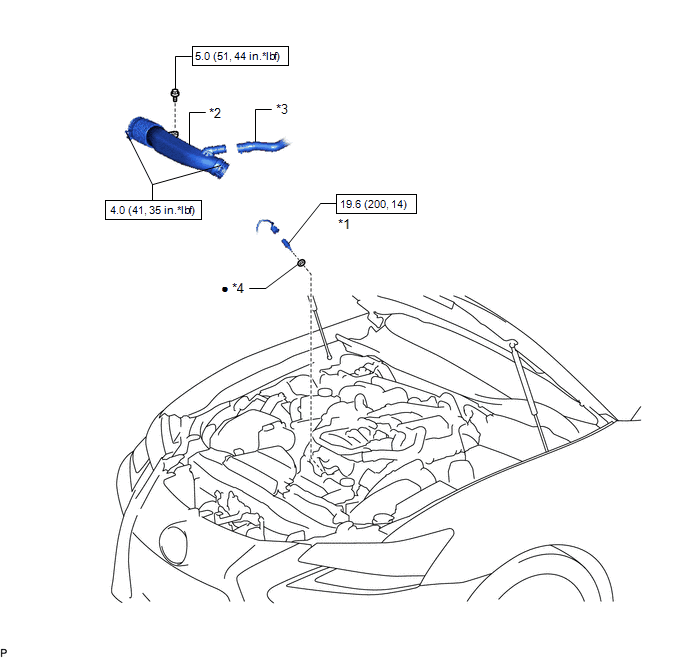

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE COOLANT TEMPERATURE SENSOR	*2	NO. 1 AIR CLEANER HOSE
*3	PCV HOSE	*4	GASKET
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
