Removal [10/2015 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 AIR CLEANER HOSE

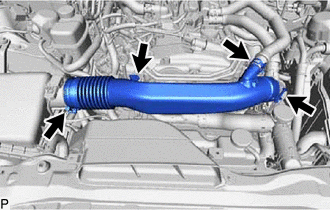

    1. Slide the hose clamp and disconnect the PCV hose from the NO. 1 air cleaner hose.
      GTY661871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Loosen the 2 hose clamps and remove the NO. 1 air cleaner hose.
  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

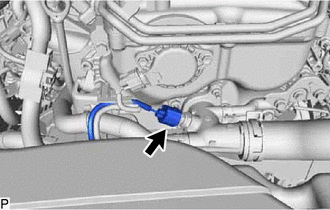

    1. Disconnect the connector from the engine coolant temperature sensor.
      GTY661869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

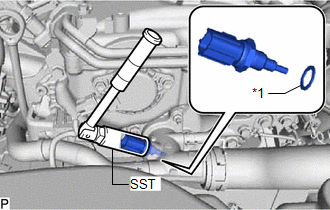

    2. Using a SST, remove the engine coolant temperature sensor and gasket.
      GTY635703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Gasket
      • SST: 09817-33191
