Components [09/2014 - 10/2015]: Illustration

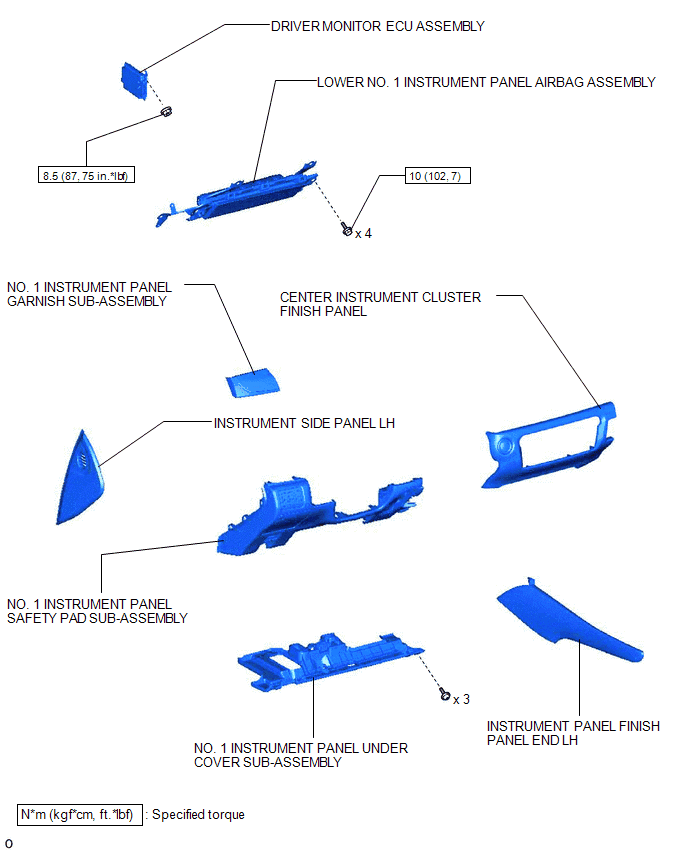

Fig 1: Driver Monitor ECU Replacement Components With Torque Specifications (09/2014 - 10/2015)
GTY405055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
