Components [10/2015 - ]: Illustration

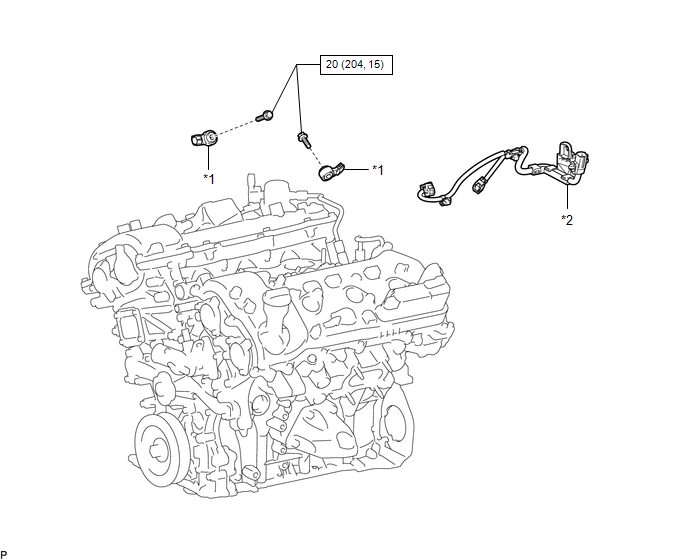

Fig 1: Knock Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	KNOCK SENSOR	*2	SENSOR WIRE
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
