Section 18 (Engine Control System - Service Information)
›
Knock Sensor
›
Components [09/2014 - 10/2015]
›
Illustration
Components [09/2014 - 10/2015]: Illustration
WARNING:
This page is about a different car, the 2015 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

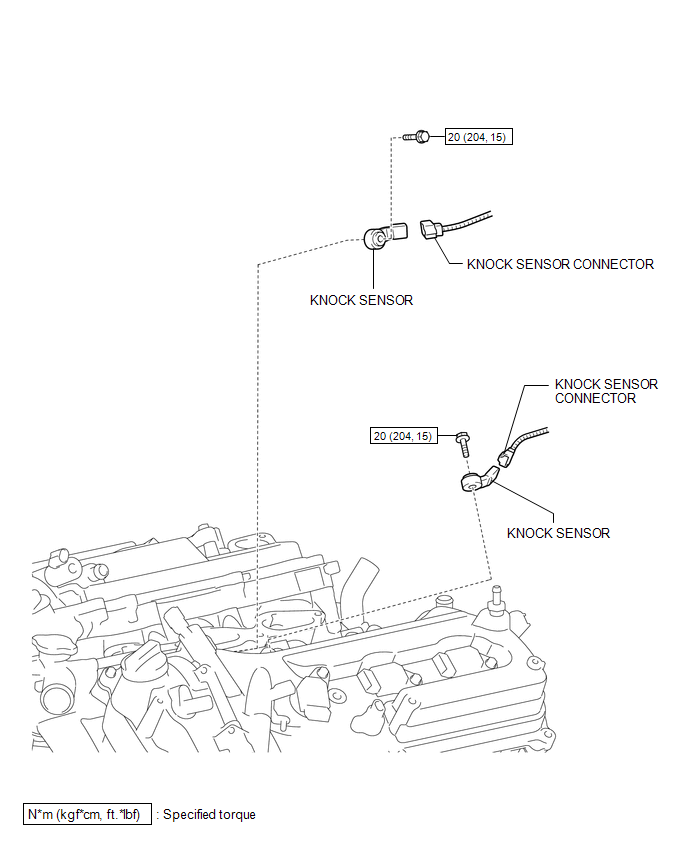

Fig 1: Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
