Inspection [09/2014 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.
- Apply auxiliary battery voltage to the master switch and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) - 18 (LED)
Battery negative (-) - 12 (GND)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.

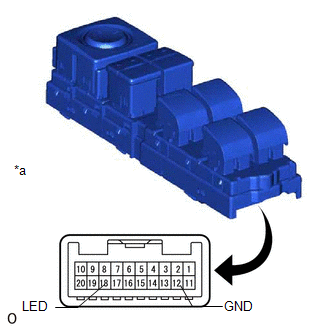

TEXT IN ILLUSTRATION*a Component without harness connected
(Multiplex Network Master Switch Assembly)
- Apply auxiliary battery voltage to the master switch and check that the LED illuminates.
- Check that the LED illuminates.
