Components [09/2014 - ]: Illustration

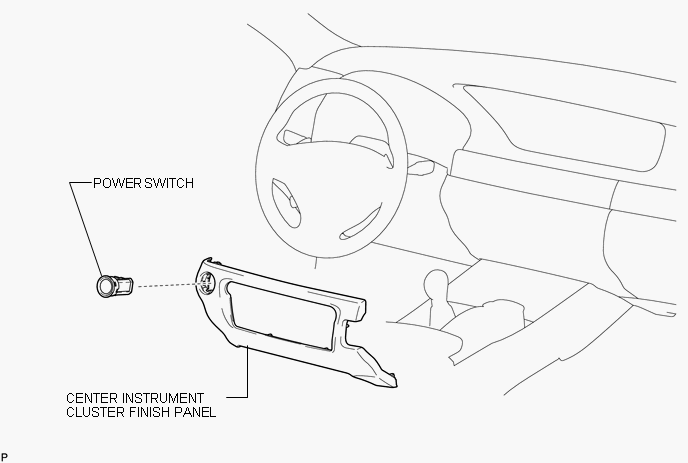

Fig 1: Identifying Power Switch Replacement Components
GTY412204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
