Components [09/2014 - ]: Illustration

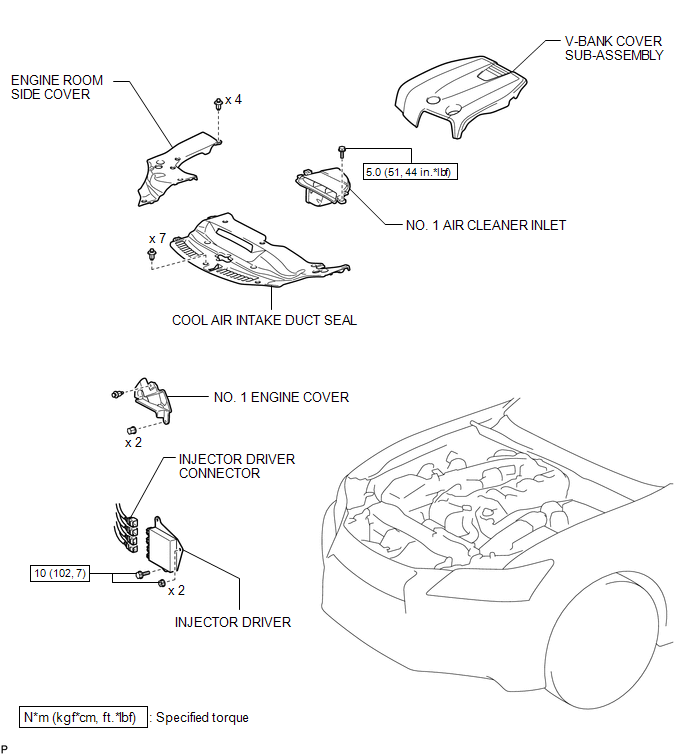

Fig 1: Injector Driver Replacement Components With Torque Specifications
GTY531813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
