Removal [09/2014 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 or PROCEDURE - Step 3

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.

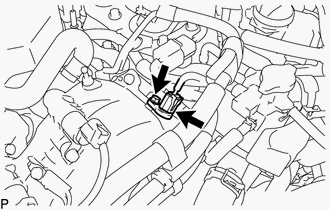

      GTY414816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY396055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.

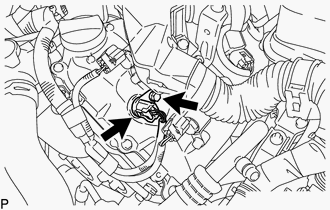

      GTY400155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.

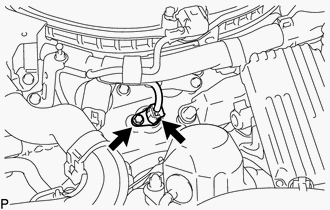

      GTY396054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
