Engine Control System (Service Information)
›
ECM
›
Components [09/2014 - ]
›
Illustration
Components [09/2014 - ]: Illustration

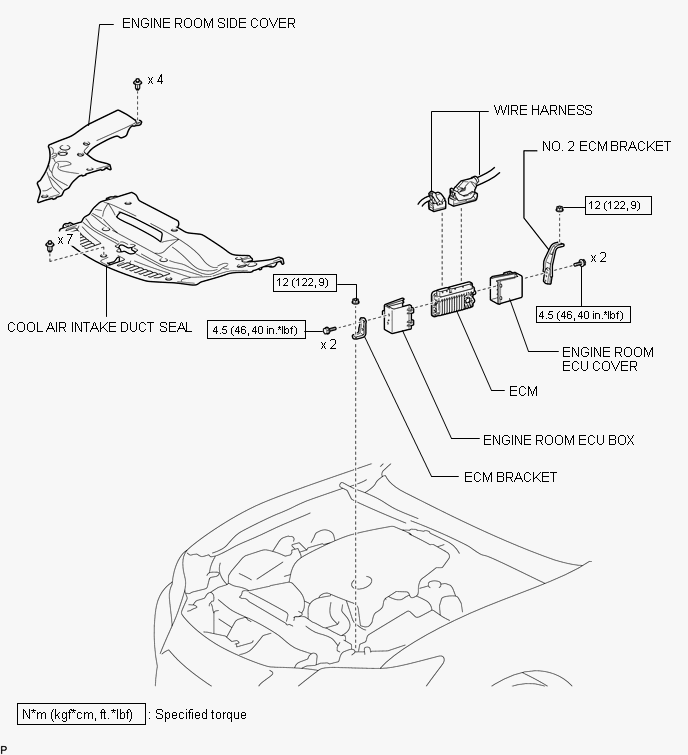

Fig 1: ECM Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
