Removal [09/2014 - ]: Procedure

(See article. Refer to PROCEDURE - Step 3 )

1. for Bank 1 Sensor 2:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

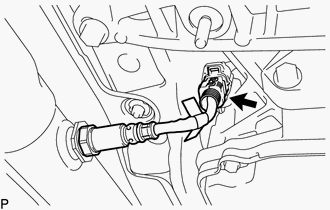

   Disconnect the heated oxygen sensor connector.

2. for Bank 2 Sensor 2:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

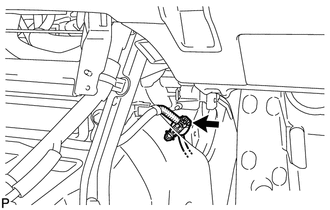

   Disconnect the heated oxygen sensor connector.

1. for Bank 1 Sensor 2:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

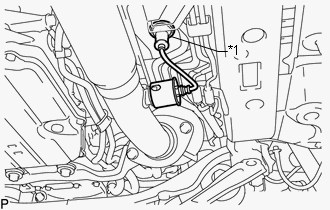

   Disconnect the grommet from the body.

   TEXT IN ILLUSTRATION



   *1

   Grommet

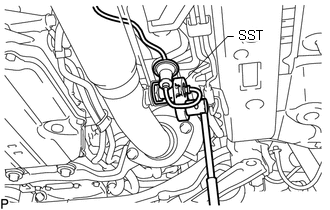

2. Using SST, remove the heated oxygen sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09224-00010
3. for Bank 2 Sensor 2:

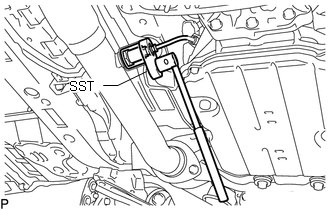

   Using SST, remove the heated oxygen sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09224-00010
