Removal [09/2014 - ]: Procedure

Refer to PROCEDURE - Step 1 or PROCEDURE - Step 1

Refer to PROCEDURE - Step 2 or PROCEDURE - Step 2

Refer to PROCEDURE - Step 3 or PROCEDURE - Step 3

See step  6

See step  7

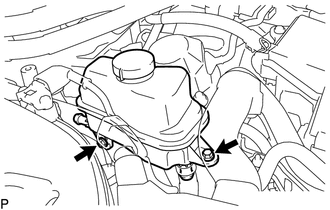

1. Remove the 2 bolts and disconnect the inverter reservoir tank assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

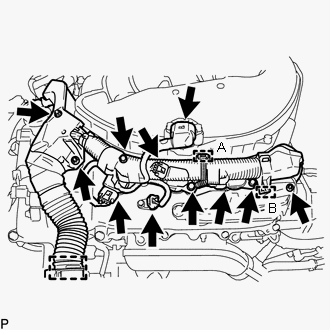

2. for Bank 1:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the 3 nuts and disconnect the clamp labeled A using a clip remover. Then, disconnect the clamp labeled B using needle-nose pliers.
      NOTE:

      Do not damage the claws of the clamp.

   2. Disconnect the manifold absolute pressure sensor connector, VVT sensor connector and 3 ignition coil connectors to disconnect the engine wire.
   3. Remove the 3 bolts and 3 ignition coils.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

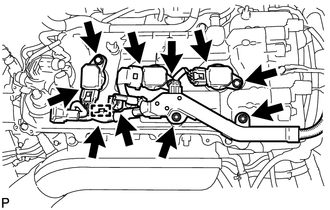

   for Bank 2:

   1. Remove the 2 nuts and disconnect the clamp.
   2. Disconnect the VVT sensor connector and 3 ignition coil connectors to disconnect the engine wire.
   3. Remove the 3 bolts and 3 ignition coils.

1. Remove the 6 spark plugs.
