Knock Sensor
›
Components [09/2014 - ]
›
Illustration
Components [09/2014 - ]: Illustration

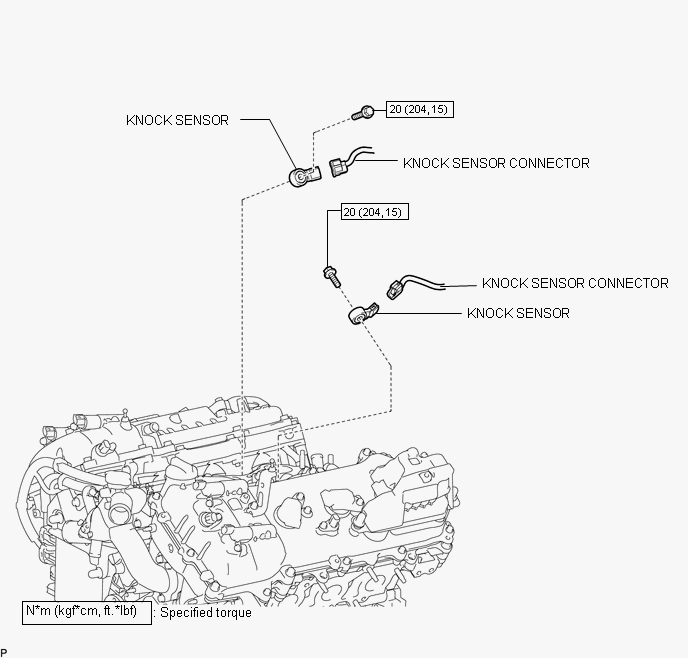

Fig 1: Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
