Removal [09/2014 - ]: Procedure

(See article. Refer to REMOVAL [09/2014 - ] )

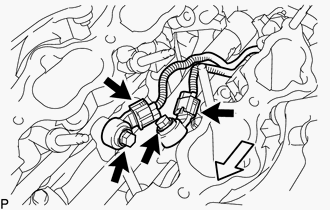

1. Disconnect the 2 knock sensor connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   Front

2. Remove the 2 bolts and 2 knock sensors.
