Inspection [10/2015 - ]: Procedure
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.

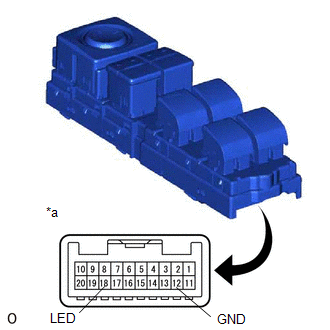

*a Component without harness connected
(Power Window Regulator Master Switch Assembly)- Apply battery voltage to the power window regulator master switch assembly and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates If the result is not as specified, replace the power window regulator master switch assembly.
- Apply battery voltage to the power window regulator master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
