Installation [10/2015 - ]: Procedure

  1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

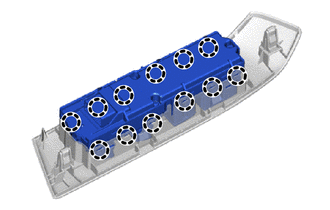

    1. Attach the claws and install the power window regulator master switch assembly.
      GTY627474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL LH

    Refer to PROCEDURE - Step 49 [10/2015 - 09/2016], or Refer to PROCEDURE - Step 49 [09/2016 - ]
