Installation [10/2015 - ]: Procedure

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

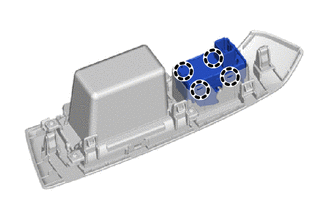

    1. Attach the claws to install the rear power window regulator switch assembly.
      GTY627471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR ARMREST BASE UPPER PANEL

    Refer to PROCEDURE - Step 43
