Removal [09/2017 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  2. REMOVE SATELLITE SWITCH SET (BRAKE HOLD SWITCH)

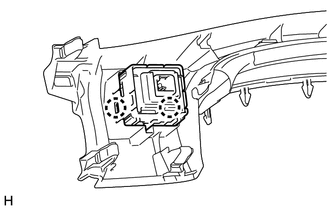

    1. Detach the 2 claws and remove the satellite switch set (brake hold switch).
      GTY404266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
