Components [10/2015 - ]: Illustration

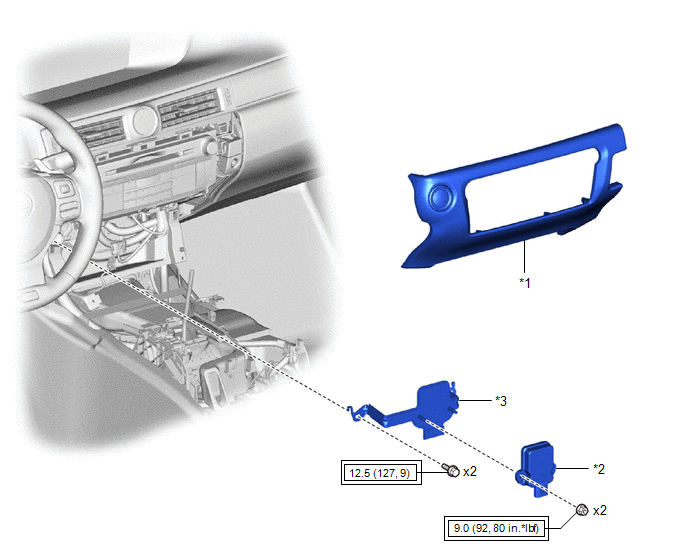

Fig 1: Roll Rate And Vertical Acceleration Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	*2	ROLL RATE AND VERTICAL ACCELERATION SENSOR (YAW RATE SENSOR)
*3	YAW RATE SENSOR BRACKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)	-	-
